Products  Special Design Fire Cabinets

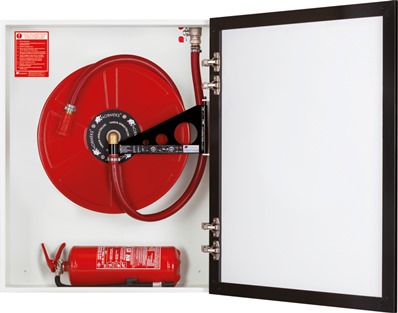

NORMEKS® model ST12-YT-CK is suitable for surface mounting. It is equipped with an aluminum framed glass door and special hinge. The reel is secured on a 180° hanged support and mounted on the lefthand side of the cabinet.

Model ST12-YT-CK has the following characteristics:

- Water supply is through the center of the reel.
- Hose reel is 70 micron RAL 3001 red electrostatically powder painted.
- Fire hose cabinet is RAL 9002 grey white or RAL 3001 red, 70 micron RAL 3001 red electrostatically powder painted.
- NORMEKS® jet / spray / shut-off nozzle is manufactured in accordance with pr.EN671-1.
- Semi-rigid rubber hose is manufactured in accordance with pr.EN694 Standard.
- NORMEKS® special supply hose.
- 1" ball valve .
- 3 positioned stainless brass reel core with sealing.
- Cabinet door is hinged at the left hand side.( Left hand side available upon request.)
- Cabinet can be turned 180°.
- One of 75 mm knockouts for pipework connection is included.
- Sign in compliance with the 92/58/EEC is located on the cabinet door.
- Reel can swing through 180°, which allows pulling the reel in any direction.
- User and installation manual.

Portabele extinguishers are shown as an accessory

MODEL HOSE DIMENSION
W x H x D
ORDER NO
Diameter
(mm)
Length
(mt)
ST12-YT-CK-B 25 20 700 x 900 x 200 ST12-YT-CK-B - 20
ST12-YT-CK-B 25 30 700 x 900 x 250 ST12-YT-CK-B - 30
ST12-YT-CK-S 25 20 700 x 900 x 200 ST12-YT-CK-S - 20
ST12-YT-CK-S 25 30 700 x 900 x 250 ST12-YT-CK-S - 30

B: WHITE GLASS / S: BLACK GLASS

Service and maintenance of the fire hose cabinets should be performed according to service and maintenance standard pr. EN 671-3 and NORMEKS® maintenance instructions. Please contact with NORMEKS® for a service and maintenance contract.


- Our products are manufactured in compliance with TS. EN 671-1.
- Manufacturer shall retain the right to make changes in the production standards and material without notice.
- Standard production has doors made of steel; hardened glass options are available upon request.
- Knockouts for pipework connection are on the right side of standard manufacturing. If it is required to be on the left side, please specify in your order.


RAL 3001


RAL 9002
  Our Standard production color is RAL 3001, please specify separately for RAL 9002.
