Products  Recessed Fire Hose Cabinet with Equipment Compartment

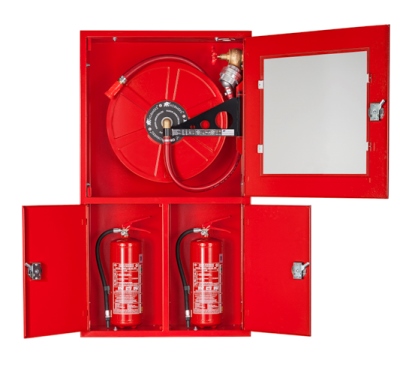

  NORMEKS® model G22-R2T is suitable for recessed mounting and has two vertical compartments to portable fire extinguishers. The reel is secured on a 180° hanged support and mounted on the right hand side of the cabinet. This model’s valve-hose connection is based on DIN 14461 standard. SNIP standards taken as reference for the manufacture of this unit..

Model G22-R2T has the following characteristics:

- Water supply is through the center of the reel.
- Hose reel is 70 micron RAL 3001 red electrostatically powder painted.
- Fire hose cabinet is RAL 9002 grey white or RAL 3001 red, 70 micron RAL 3001 red electrostatically powder painted.
- NORMEKS® jet / spray / shut-off nozzle is manufactured in accordance with pr.EN671-1.
- Semi-rigid rubber hose is manufactured in accordance with pr.EN694 Standard.
- 2" ball valve and special valve mounting adaptor.(reduction with 2"-1" storz coupling )
- 3 positioned stainless brass reel core with sealing.
- Adjustable frame and double bended cabinet door made of 1.5 mm DKP steel.
- Cabinet door is hinged at the right hand side. ( Left hand side available upon request.)
- Cabinet inside box is made of 1.2 mm DKP Steel.
- Two of 75 mm knockouts for pipework connection is included.
- NORMEKS® door lock is made of circular chrome plating.
- Adjustable frame allows the cabinet to be mounted before completion of civil works and frame.
- Can be fixed after the details such as rendering and painting are over.
- Sign in compliance with the 92/58/EEC is located on the cabinet door.
- Reel can swing through 180°, which allows pulling the reel in any direction.
- User and installation manual.

Portable extinguishers are shown as an accessory

MODEL HOSE DIMENSION
W x H x D
ORDER
NO
Diameter
(mm)
Length
(m)
G22-R2T 25 20 700 x 1300 x 245 G22-R2T - 20
G22-R2T 25 20 700 x 1300 x 195 G22-R2T - 20 - 20
G22-R2T 25 30 700 x 1300 x 245 G22-R2T - 30

Service and maintenance of the fire hose cabinets should be performed according to service and maintenance standard pr. EN 671-3 and NORMEKS® maintenance instructions. Please contact with NORMEKS® for a service and maintenance contract.


- Our products are manufactured in compliance with TS. EN 671-1.
- Manufacturer shall retain the right to make changes in the production standards and material without notice.
- Standard production has doors made of steel; it is available as plexiglass or hardened glass upon request as optional.
- Knockouts for pipework connection are on right side in standard manufacturing. If it is required on left top or bottom, please specify while ordering.


RAL 3001


RAL 9002
  Our Standard production color is RAL 3001, please specify separately for RAL 9002.

Model G22-R2T Recessed Fire Hose Cabinet with Equipment Compartment PDF
